In the realm of electrical engineering, ensuring the safety and efficiency of electrical systems is paramount. One critical component that plays a vital role in achieving this is the Molded Case Circuit Breaker (MCCB). Specifically, the 3 pole MCCB is designed for three-phase electrical systems, making it an essential device in industrial and commercial applications. This article delves into the features, applications, advantages, and selection criteria of 3 pole MCCBs.

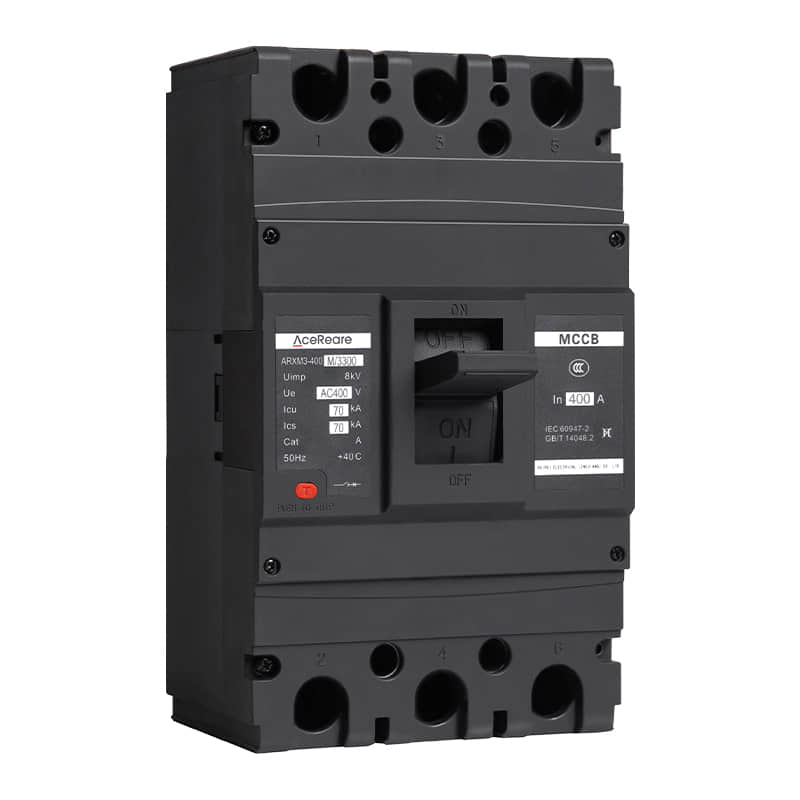

What is a 3 Pole MCCB?

A 3 pole MCCB is a type of circuit breaker that protects electrical circuits from overloads, short circuits, and ground faults. It consists of three separate poles that correspond to the three phases in a three-phase electrical system. Unlike single-pole breakers, which are suitable for single-phase systems, the 3 pole MCCB can simultaneously disconnect all three phases, providing enhanced safety and reliability. Key Features Current Rating: 3 pole MCCBs come with various current ratings, typically ranging from 16A to 2500A, allowing them to accommodate a wide range of applications. Thermal and Magnetic Protection: Most 3 pole MCCBs feature both thermal and magnetic protection. Thermal protection reacts to prolonged overload conditions, while magnetic protection provides immediate disconnection during short circuits.
