In the realm of electrical engineering, the ACB breaker, or Air Circuit Breaker, stands out as a crucial device for ensuring safety and reliability in electrical systems. This article delves into the workings, applications, and advantages of ACB breakers, shedding light on why they are indispensable in modern electrical infrastructure.

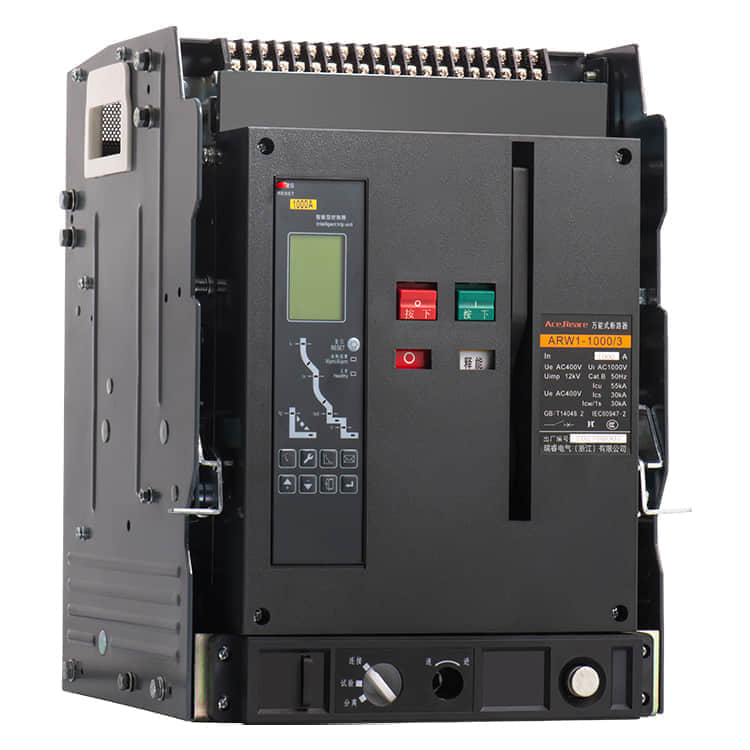

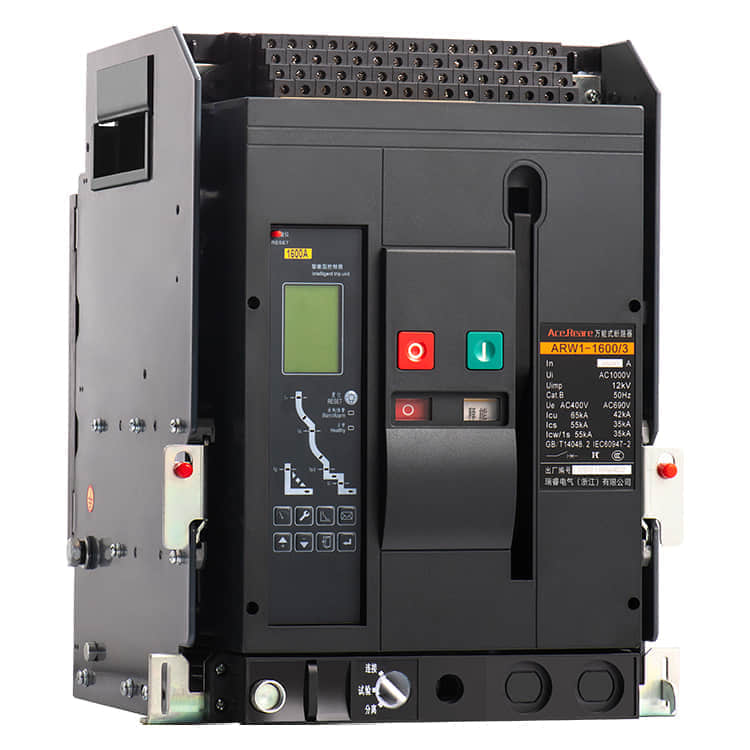

What is an ACB Breaker?

An Air Circuit Breaker is an electromechanical device designed to protect electrical circuits from overloads and short circuits. It operates by automatically interrupting the current flow in the event of a fault, thereby preventing damage to equipment and reducing the risk of fire hazards. Unlike traditional fuses, which must be replaced after a fault occurs, ACBs can be reset and reused, making them a more sustainable option for circuit protection. Working Principle of ACB Breakers ACB breakers function through a combination of thermal and magnetic mechanisms. When the current flowing through the circuit exceeds the predetermined limit, the heat generated by the overload activates a bimetallic strip that bends and triggers the opening of the contacts. In the case of short circuits, a magnetic coil is energized by the sudden surge of current, creating a magnetic field strong enough to pull the armature and trip the breaker instantly. This dual-action mechanism ensures rapid disconnection of the faulty circuit, minimizing damage and enhancing safety.
