Stainless steel pneumatic butterfly valves are essential components widely used in various industrial applications, particularly in fluid control systems. Their design, functionality, and material properties make them an attractive choice for industries such as food and beverage, chemical processing, and wastewater management. This article delves into the features, benefits, and applications of stainless steel pneumatic butterfly valves, providing insight into their importance in modern engineering.

Design and Structure

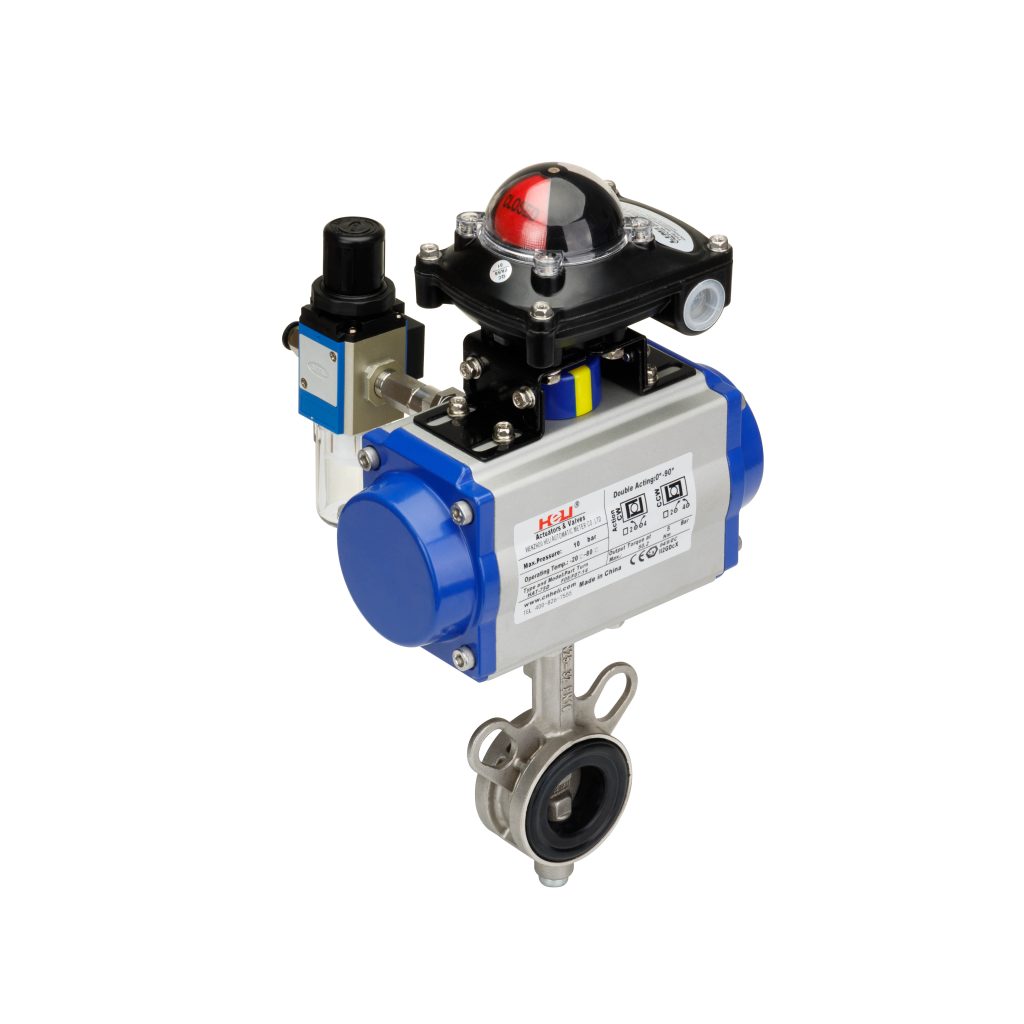

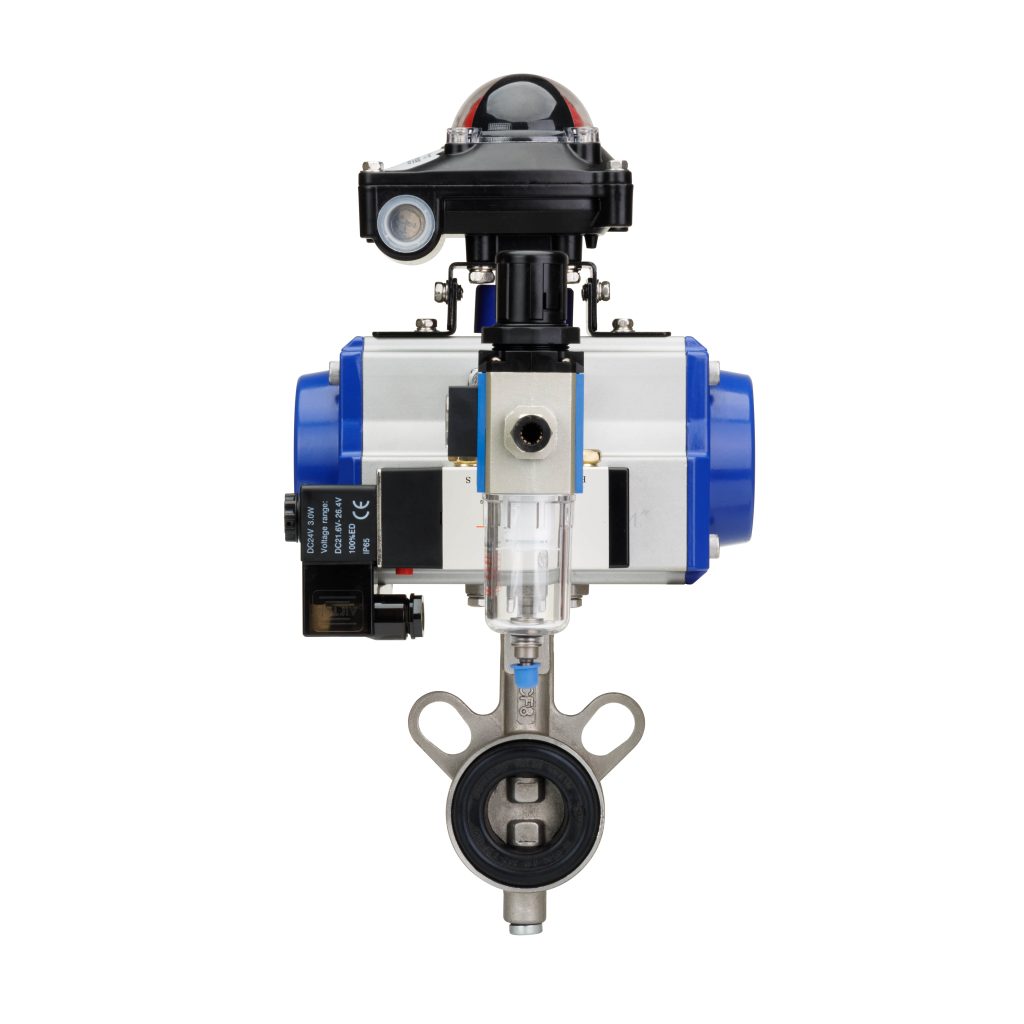

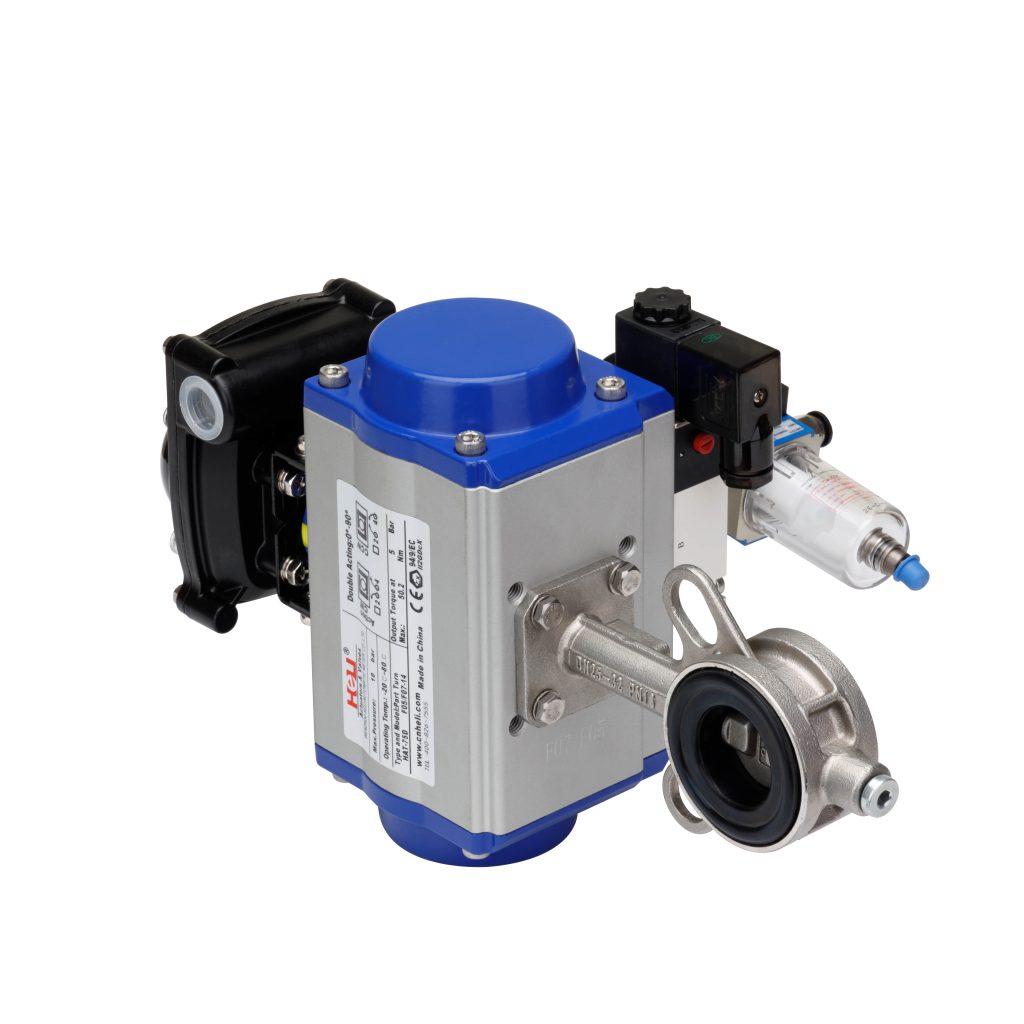

A stainless steel pneumatic butterfly valve consists of a disc that rotates on a shaft within a pipeline. The valve is actuated by pneumatic pressure, allowing for quick and efficient control of fluid flow. The primary components include the valve body, disc, shaft, actuator, and seals. The valve body is typically made of stainless steel, providing resistance to corrosion and high temperatures. This makes it ideal for handling aggressive fluids or environments where traditional materials would fail. The butterfly valve design enables a compact and lightweight structure compared to other valve types. This feature is particularly beneficial in applications where space is limited or weight is a concern. The valve’s operation is straightforward: when the actuator applies air pressure, the disc rotates, allowing or blocking the flow of the fluid. This design results in minimal pressure drop across the valve, making it an energy-efficient option for controlling fluid dynamics.
